HiOSO Technology Co., Ltd. Professional fttx & switch supplier HiOSO takes you to the fiber era! Website:www.hioso.com
5 Years
| Ask Lasest Price | |
| Brand Name : | Hioso |
| Model Number : | FOWAY1309PFC |
| Price : | Negotiable |
| Certification : | CE, RoHS, CCC |
| Payment Terms : | D/A, D/P, T/T, Western Union, |
| Supply Ability : | 1000pcs/month |
| Delivery Time : | 5-10working days |

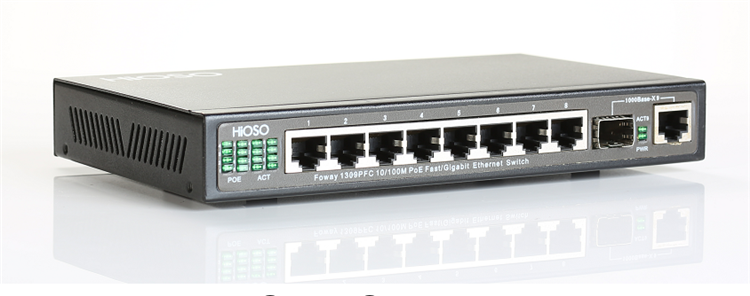

Network 8 Ports Poe Ethernet Switch with 1 Gigabit Combo 48V for Hikvision IP Camera
Character
l Support Maximum 8 100M PoE ports and 1 1000M Combo port (100M/1000M SFP port and 10/100/1000M RJ45 port optional)
l Each PoE port supports to auto discovery the standard power receiving devices
l Support IEEE802.3af 15.4W and IEEE802.3at 30W PoE standards
l Support each port full rate, full-duplex non-blocking forwarding
l Support 8K MAC learning, 1Mbit storage and forward cache space, 4.6G back plane bandwidth
l Each RJ45 port using anti-high voltage circuit, strengthen the lightning protection and anti-interference ability
l Support to provide wall-mounted hanger better for installation if need, metal casing better for heat dissipating
Technical Specification
Parameter | Specification |
Standard | IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-SX/LX Gigabit Ethernet, IEEE802.3af, IEEE802.3at, IEEE802.1d Spanning Tree |
PoE | Power supply ports: 8 ports Standard and power consumption: IEEE802.3af 15.4W, IEEE802.3at 30W Working mode: auto discovery power receiving devices and auto power supply/ cutting |
Wavelength | SFP modules: 850nm/1310nm/1490nm/1550nm |
Distance | 100M SFP multi-mode: 2Km Single-mode: 20/40/60/80/100/120Km Single-fiber single-mode: 25/40/60/80/100/120Km 1000M SFP multi-mode: 220m (fiber 62.5/125μm)/ 550m (fiber 50/125μm) Single-mode:10/20/40/60/80/100/120Km Single-fiber single-mode: 10/20/40/60/80/100/120Km |
Port | 8 100M RJ45 ports (PoE optional): 10/100Mbps 1 1000M Combo port: 1 Gbps, 100M/1000M SFP&10/100/1000M RJ45 |
MAC | 8K |
Buffer memory space | 1Mbit |
Bit error rate | <1/1000000000 |
MTBF | 100000 hours |
Power | DC48V(External power), AC110V/220V & DC48V redundant power back up(Internal power) |
Power consumption | 10W |
Working temperature | -10~60℃ |
Storage temperature | -40~80℃ |
Humidity | 5%~90% non-condensing |
Dimension | 28mm (H)×193mm(W)×119mm (D) |
solution
|
|
