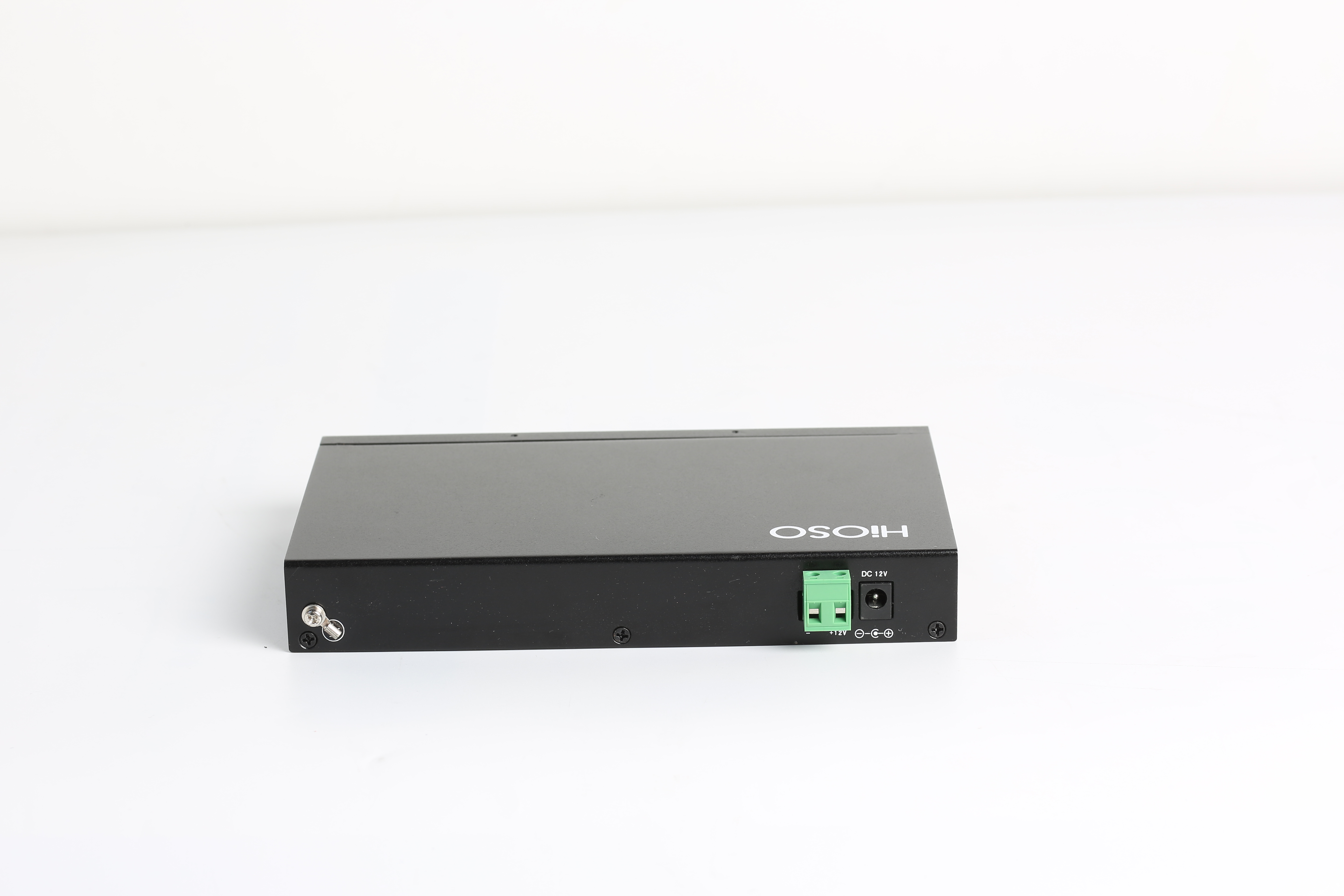

9 Ports Industrial Ethernet Access Switch 8FE Ports + 1 100M FX Port

Overview

HiOSO Foway2209TF series 9 ports 100M Security Industrial Ethernet Switches, supply 8 10/100M RJ45 ports and 1 100M FX uplink port; support to choose web or SNMP management; support to transmit HD video flow; apply to Security system, electronic power system and traffic system requirements.

Character

• Support 8 10/100M RJ45 ports and 1 100M FX uplink port
• Support each port full rate, full-duplex non-blocking forwarding
• Support 2K MAC learning, 1Mbit storage and forward cache space,2G back plane bandwidth
• Each RJ45 port adopts anti-high voltage circuit, strengthen the lightning protection and anti-interference ability

Technical Specification

Parameter	Specification
Wavelength	850nm/1310nm/1490nm/1550nm
Transmission distance	100M fiber:multi-mode: 2km; Single-mode:25/40/60/80/100/120Km; Single-fiber single-mode:25/40/60/80/100/120Km; CAT5: 100M
Ports	8 10/100M RJ45 ports: 10/100Mbs 1 100M FX uplink port: 100Mbps SC/FC/ST fiber port
MAC	2K
Buffer memory space	1Mbit
Bit error rate	<1/1000000000
MTBF	100000 hours
Power	DC12V/1A dual input redundant backup
Power consumption	5W
Installation	Wall mounting type
Dimension	30mm (H)×219mm(W)×119mm (D)

Order information

No	Type	NMS	Ports
1	Foway2209TF	NO	8 10/100M RJ45 ports + 1 100M FX uplink
2	Foway2209TFM	YES	810/100M RJ45 ports + 1 100M FX uplink
