    SFP AC100V 1000Mbps Fiber Optic Switch , Single Mode Fiber Switch

    Ask Lasest Price
    Brand Name : Hioso
    Model Number : FOWAY6200-28FS
    Certification : CE, RoHS, CCC
    Price : negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 2000psc/month
    Delivery Time : 2-10 working days
    • Product Details
    • Company Profile

    SFP AC100V 1000Mbps Fiber Optic Switch , Single Mode Fiber Switch

    Product Description
    FOWAY6200-28FS 24 1000M SFP + 4 10G SFP+ Uplink Fiber Switch
    Character ✔Support 24 100/1000M SFP (or SFP-1000BaseT RJ45 ) access and 4 10G SFP+ uplink port (1000M/10G) Support the default 100M,1000M SFP,the SFP-1000BaseT RJ45 and 10G SFP+ hot plug Support full rate, full-duplex non-blocking forwarding at each port Support WEB ,and SNMP management (optional):VLAN,STP/RSTP,Trunk port aggregation, IGMP,port Mirroring,port isolation,broadcast control,loop detection,QinQ, etc
    Technical Specification
    Parameter
    Specification
    Standard
    IEEE802.3 10Base-T Ethernet,IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-SX/LX Gigabit
    Ethernet, IEEE802.1d Spanning Tree Protocol,IEE802.1w Rapid STP,IEE802.1s Multiples STP,IEE802.1q Vlan,IEE802.1q Qos,IEE802.3ad
    Trunk,IEE802.3X Flow Control
    Wavelength
    SFP:850nm/1310nm/1490nm/1550nm
    Distance
    100M SFP Multi-mode: 2km (fiber size 62.5/125μm or 50/125μm)
    Single-mode: 20/40/60/80/100/120Km
    Single-fiber single-mode: 25/40/60/80/100/120Km
    1000M SFP Multi-mode: 220m (fiber size 62.5/125μm)/550m(fiber size 50/125
    μm)
    Single-mode: 10/20/40/60/80/100/120Km
    Single-fiber single-mode:10/20/40/60/80/100/120Km
    CAT5: 100m
    Port
    24 Gigabit SFP fiber ports: 1000Mbps,1000M SFP / SFP-1000BaseT
    4 10G SFP+ port:10 Gbps, 1G SFP/10G SFP+
    1 console management port
    1 100M RJ45 management port
    MAC
    16K
    Buffer memory space
    12Mbit
    Bit error rate
    <1/1000000000
    MTBF
    100000 hours
    Power
    AC 110-230V
    Power consumption
    33W
    Working
    temperature
    -10~60℃
    Storage temperature
    -40~80℃
    Humidity
    5%~90% non-condensing
    Dimension
    44mm (H)×440mm(W)×210mm (D)

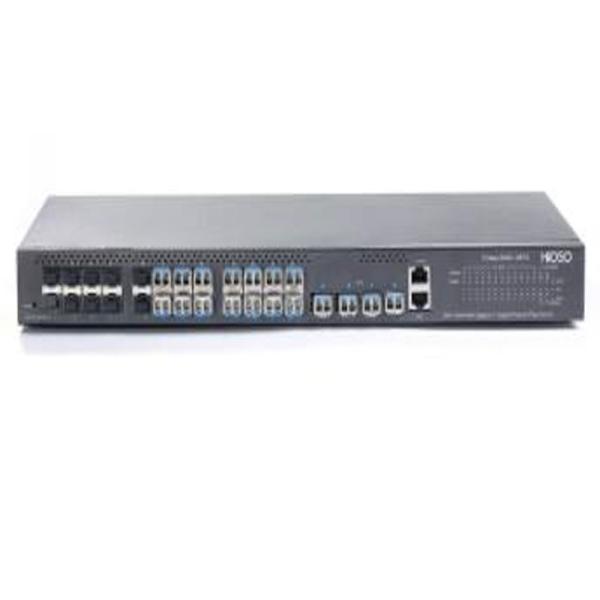

    Details Images
    24 1000M SFP PORTS
    4 10G SFP+ Uplink
    POWER:AC100-240V
    Product Usage
