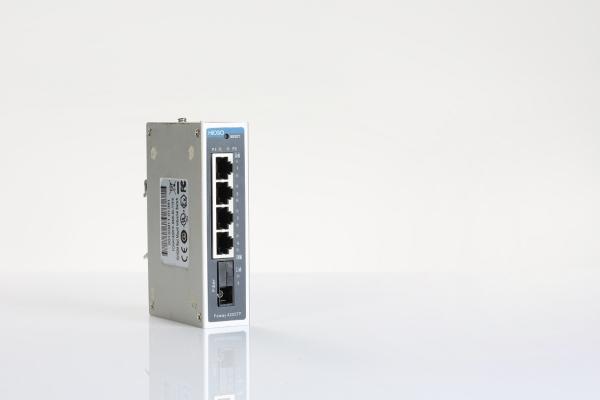

    HiOSO 1310nm Industrial Ethernet Switch Din Rail Mount 5 Ports

    Ask Lasest Price
    Brand Name : Hioso
    Model Number : FOWAY4205TF
    Certification : CE, RoHS, CCC
    Price : Negotiable
    Payment Terms : TT
    Supply Ability : 5000pcs/month
    Delivery Time : 2-12 working days
    • Product Details
    • Company Profile

    HiOSO 1310nm Industrial Ethernet Switch Din Rail Mount 5 Ports

    FOWAY4205TF 1 100M FX + 4 10/100M RJ45 Din Rail Ethernet switch


    Overview

    Foway 4205TF series 5 ports Din Rail Type Industrial Ethernet switch , supply 4 10/100M RJ45 ports and 1 100M fiber uplink; provide 2 RPS (Redundant power supply) input : 10 ~ 60 VDC and 18 ~ 30VAC,support to connect DC power and AC power at the same time.


    Foway 4205TF series switches support to work under the -40 ~ 75°C , With IP30 environmental protection grade, suitable for most industrial applications. Foway 4205TF series supply DIP switch , support to enable or disable broadcast storm protection,provide another flexible solutions for different industrial applications.


    Character

    l 10 / 100M adaptive RJ45 ports, support MDI and MDI-X auto recognition

    l 100M fiber port, supports muti-mode, dual-fiber single-mode and single-fiber single-mode fiber, maximum distance 120km

    l Provide 2 RPS (Redundant power supply) input : 10~ 60 VDC and 18 ~ 30VAC,with reverse connection protection

    l Support maximum 1552 byte long frame data packet transmission

    l DIP switch supports to enabled/disable broadcast storm function

    l Each RJ45 port adopts anti-high voltage circuit, strengthen the lightning protection and anti-interference ability

    l With IP30 metal case; support din rail or wall mounting installation

    Technical Specification

    ParameterSpecification
    Access mode10/100Mbps
    StandardIEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet,IEEE802.1d Spanning Tree Protocol ,IEEE802.1w Rapid STP,IEEE802.1s Multiple STP,IEEE802.1q Vlan,IEEE802.1p Qos,,IEEE802.3ad Trunk, IEEE 802.3x Flow Control
    Wavelength850nm/1310nm/1490nm/1550nm
    Transmission distanceDual-fiber multi-mode: 2Km; single-mode: 25/40/60/80/100/120Km;single-fiber single-mode: 25/40/60/80/100Km Category-5 twisted pairs: 100m
    Port

    4 RJ45 ports: 10/100M

    1 100M FX port: Multi-mode – SC or ST (fiber size: 50,62.5/125μm)
    Single mode/single-fiber single-mode – SC/FC fiber port (fiber size: 9/125μm)

    Conversion modeMedium conversion, storing and forwarding/straight-through
    MAC address tableI K
    Buffer space1Mbit
    Flow controlFull duplex state: flow control; half-duplex state: back pressure mode
    Delay9.6us
    Bit error rate<1/1000000000
    MTBF100,000 hours
    LEDFX Link(fiber link/action), 100M (twisted pair rate 100M) ,TP1/2/3/4 Link (twisted pair link/action);P1 (power supply P1 connected) ,P2(power supply P2 connected)
    Power12/24/48 VDC,18 ~ 30VAC input
    Power consumption3W
    Operating temperatureNormal:-10~60°C ;-T(wide range temperature: -40~75°C
    Operating humidity5%~90%
    Storage temperature-40~85°C
    Storage humidity5%~95% (non-condensing)
    InstallationDin rail installation, wall mounting installation
    Dimensions115mm×30mm×70mm (height * width * depth)

    Order information

    NoProduct codeNMSPortsPower
    1Foway4205TF-M2-SCNo4FE+1 100M multi-mode fiber portDC12-48V
    2Foway4205TF-S20-SCNo4FE+1 100M dual-fiber single-mode 20kmDC12-48V
    3Foway4205TF-S220-SC-T1310No4FE+1 100M single-fiber single-mode 20kmDC12-48V
    4Foway4205TFM-M2-SCYES4FE+1 100M multi-mode fiber portDC12-48V
    5Foway4205TFM-S20-SCYES4FE+1 100M dual-fiber single-mode 20kmDC12-48V
    6Foway4205TFM-SS20-SC-T1310YES4FE+1 100M single-fiber single-mode 20kmDC12-48V
