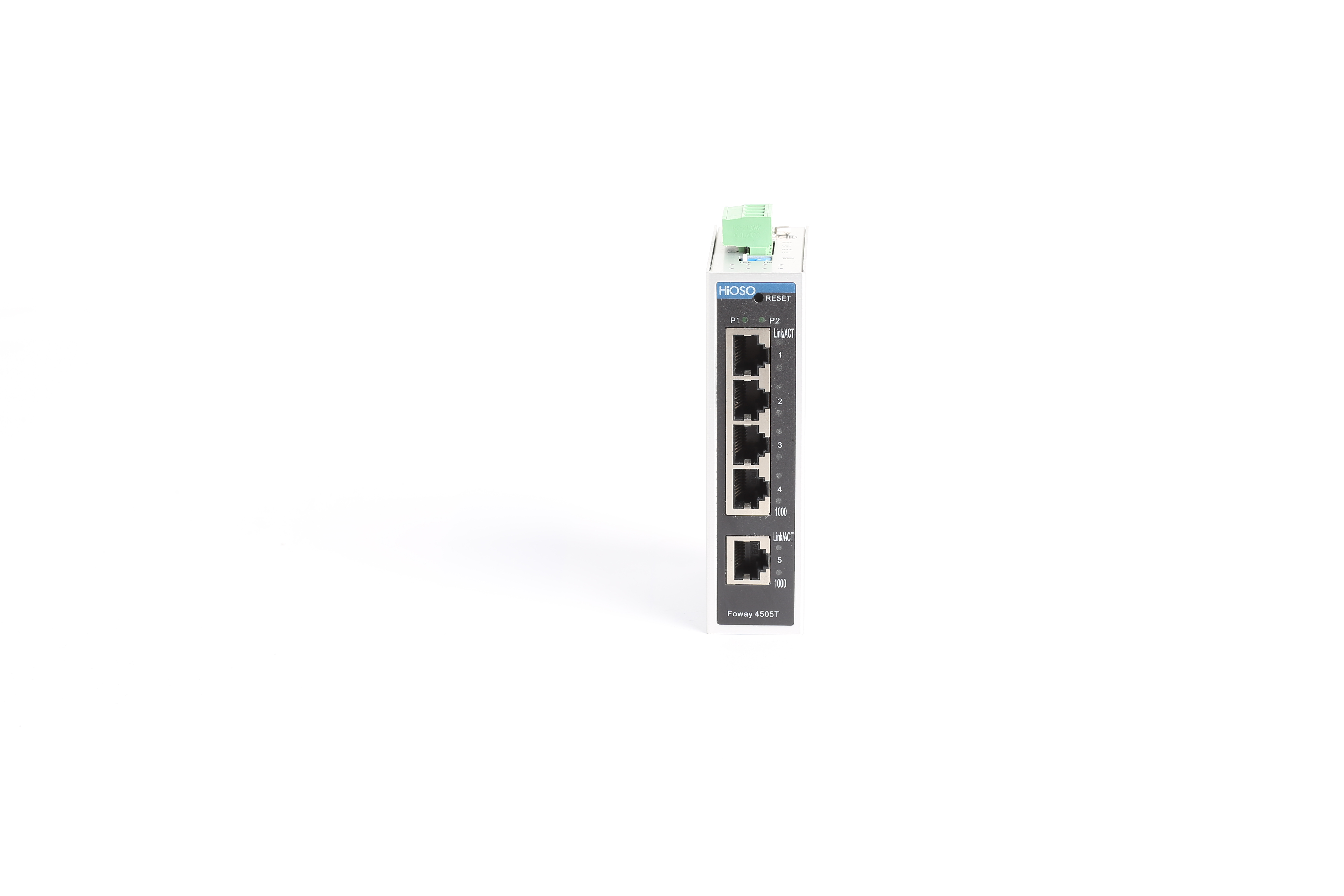

Gigabit 5 Ports Din Rail Ethernet Switch 4 Rj45 Ports + 1 Fiber Port
Character
Technical Specification
Parameter | Specification |
Access mode | 10/100/1000Mbps |
Standard | IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet,IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-SX/LX Gigabit Ethernet IEEE802.1d Spanning Tree Protocol ,IEEE802.1w Rapid STP,IEEE802.1s Multiple STP,IEEE802.1q Vlan,IEEE802.1p Qos,,IEEE802.3ad Trunk, IEEE 802.3x Flow Control |
Wavelength | 850nm/1310nm/1490nm/1550nm |
Transmission distance | 1000M fiber:multi-mode: 220m (fiber size 62.5/125μm)/550m (fiber size 50/125μm) Single-mode:10/20/40/60/80/100/120Km;Single-fiber:10/20/40/60/80/100/120Km; Category-5 twisted pairs: 100m |
Port | 4 RJ45 ports: 10/100/1000M; 1 1000M FX port: SC |
Conversion mode | Medium conversion, storing and forwarding/straight-through |
MAC address table | 4K |
Buffer space | 2Mbit |
Flow control | Full duplex state: flow control; half-duplex state: back pressure mode |
Delay | 1us |
Bit error rate | <1/1000000000 |
MTBF | 100,000 hours |
LED | FX Link(fiber link/action),TP1/2/3/4 1000M (twisted pair rate 1000M) ,TP1/2/3/4 Link (twisted pair link/act;P1 (power supply P1 connected) ,P2(power supply P2 connected) |
Power | 12/24/48 VDC,18 ~ 30VAC input |
Power consumption | 4W |
Operating temperature | Normal:-10~60°C ;-T(wide range temperature: -40~75°C |
Operating humidity | 5%~90% |
Storage temperature | -40~85°C |
Storage humidity | 5%~95% (non-condensing) |
Installation | Din rail installation, wall mounting installation |
Dimensions | 115mm×30mm×70mm (height * width * depth) |
|
|
