    White One Pon Gigabit GPON ONU Switch Mode Automatically

    Ask Lasest Price
    Brand Name : Hioso
    Model Number : HA411GSX
    Certification : CE, RoHS, CCC
    Price : USD10.5/unit
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 10000/month
    Delivery Time : 3-10working days
    • Product Details
    • Company Profile

    White One Pon Gigabit GPON ONU Switch Mode Automatically

    Gpon Onu Fiber Optic Equipment One Pon Gigabit Xpon Onu Supply Ftth Olt

    Feature

    (1) Support EPON/GPON mode and switch mode automatically

    (2) Support ONU auto-discovery/Link detection/remote upgrade of software

    (3) Support Route PPPoE/DHCP/Static IP and Bridge mode

    (4) Support IPv4/IPv6 dual mode

    (5) Support Firewall function and IGMP multicast feature

    (6) Support LAN IP and DHCP Server configuration


    Technical Specification


    Technical item

    Details

    Wavelength

    TX: 1310nm, RX: 1490nm

    Optical Interface

    SC/UPC Connector

    Chip Spec

    RTL9601D ,CPU 300MHz,DDR2 32MB

    Flash

    SPI Nor Flash 16MB

    LAN Interface

    1x 10/100/1000Mbps auto adaptive Ethernet interface. RJ45 connector

    LED

    4 LED, For Status of PWR,LOS,PON,LINK/ACT

    Push-Button

    2,For Function of Power on/off,Reset


    Operating Condition

    Temperature: 0℃~+50℃

    Humidity: 10%~90%(non-condensing)


    Storing Condition

    Temperature: -30℃~+60℃

    Humidity: 10%~90%(non-condensing)

    Power Supply

    DC 12V/0.5A

    Power Consumption

    <3W

    Dimension

    120mmx78mmx30mm(L×W×H)

    Net Weight

    0.08Kg


    Working Environment


    Pilot

    Status

    Description


    PWR

    On

    The device is powered up.

    Off

    The device is powered down.


    PON

    On

    The device has registered to the PON system.

    Blink

    The device is registering the PON system.

    Off

    The device registration is incorrect.


    LOS

    Blink

    The device doses not receive optical signals.

    Off

    The device has received optical signal.


    LINK/ACT

    On

    Port is connected properly (LINK).

    Blink

    Port is sending or/and receiving data (ACT).

    Off

    Port connection exception or not connected.

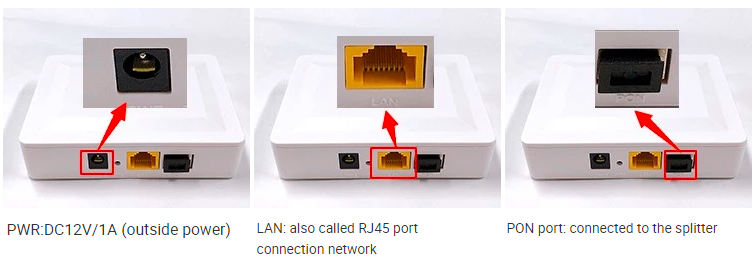

    Details Images

    Product Usage


    Paking & Shipping

    White One Pon Gigabit GPON ONU Switch Mode Automatically


    FAQ

    Q: What payment term can we provide?
    A: Accepted Delivery Terms: FOB,CFR, CIF, EXW;
    Accepted Payment Currency: USD, CNY;
    Accepted Payment Type: T/T,L/C,Western Union,Cash,Escrow;
    Q: How about shipping?
    A: For sample, about 5-7 days by fast delivery ;
    For Mass order, bout 15-25 days by sea, air, train shipping.
