GPON Olt Sfp C++ Olt Transceiver 1490 Nm DFB Tx With Isolator

1. Features

• 1310 nm APD Rx
• Digital diagnostics SFF-8472 Compliant
• 2488 Mbps continuous mode Transmission
• 1244 Mbps Burst mode receiver Data Rate
• RX Fast Burst Mode Detection
• Provide fast RSSI function
• Operation case temperature: 0~70°C or -40~85°C
• Class C++ link budget
• Comply with ITU-T G984.2 Amendment 1
• Complies with RoHS directive (2002/95/EC)

2. Application

• GPON OLT Class C++
• FTTx

3. Function Diagram

4. Recommended Operating Conditions

5. Transmitter Characteristics

6. Receiver Characteristics

Note 1: Measured with 1310nm, 1.244Gbps PRBS223-1 burst-mode optical input, ER=10dB, BER=1x10-10;

Single burst packet length is 40us and packet interval is 40us.

Note 2: Input optical power level difference of adjacent burst packets.

Note 3: Receiver optical power ranged from -8dBm to -28dBm, measured with 1310nm, 1.244Gbps PRBS27-1

burst-mode optical input, ER=10dB, 50%duty cycle.

Note 4: BPD assert low when module receive “Reset” signal, assert high when burst package is detected and latch

to high state until next “Reset” signal.

Note 5: For RSSI Measurement

Note 6: Refer to first bit of the preamble

7. Burst Mode Receiver Dynamic Range

8. Timing Parameter Definitions in Burst Mode Sequence

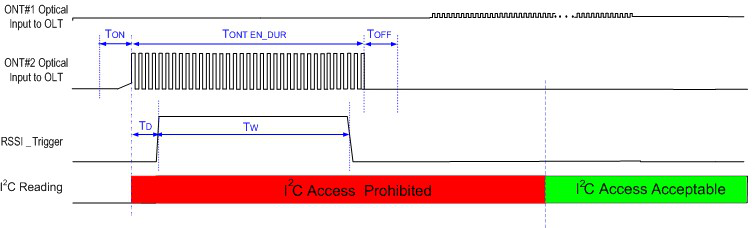

9. RSSI Timing Sequence
