    HiOSO HA7304 4 PON OLT AC100-240V Metal Case Pizza Box EPON OLT Compatible With HW ZTE ONUS

    Ask Lasest Price
    Brand Name : Hioso
    Model Number : HA7304
    Certification : CE, RoHS, CCC
    Price : Negotiable
    Payment Terms : T/T, Western Union, D/P, D/A, L/C, MoneyGram
    Supply Ability : 2000pcs/month
    Delivery Time : 3-10 work days
    • Product Details
    • Company Profile

    HiOSO HA7304 4 PON OLT AC100-240V Metal Case Pizza Box EPON OLT Compatible With HW ZTE ONUS

    EPON OLT PIZZA BOX 4PON WEB SNMP CLI Metal Case EPON OLT


    Overview

    HA7304 is a pizza box EPON OLT, with 4 SFP PON ports . HA7304 works with different brands,different chipsts ONUs and ODN, to establish a passive optic network. The whole system supports 4-PON, 256 ONUs.


    HA7304 applies to counties, towns and villages fiber network access. It is also applied to FTTH/FTTB/FTTO projects, for IP phone, Ethernet data and IPTV services access. It supports WEB management. HA7304 meets China Telecom EPON standards.

    Charater

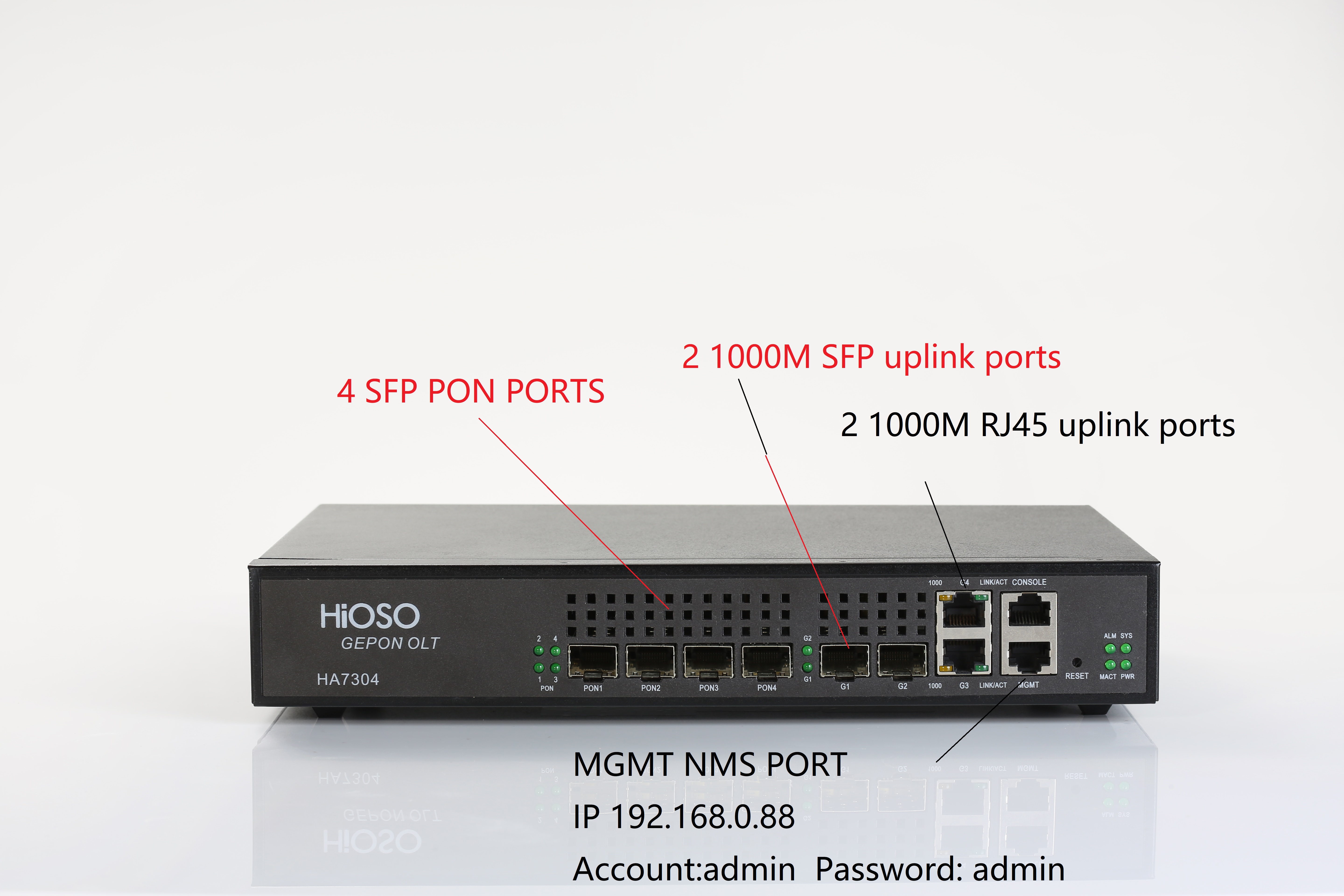

    • 4 SFP PON ports
    • 2 1000M SFP uplink ports
    • 2 1000M RJ45 uplink ports
    • Each PON port support 1:64 split ratio, total 256 ONUs access
    • Distance can reach 20km under 1:32 split ratio
    • Support other brands EPON XPON ONUs
    • Support web snmp cli
    Technical Specifications
    Parameter
    Specification
    Operating wavelength
    1310nm(RX) /1490(TX)nm
    Optical power
    +2.5 ~ +7dBm
    Receiving sensitivity
    -30dBm
    Max distance
    20km
    Max splitter ratio
    1:64
    Capacity
    4 PON, maximum 256pcs ONU
    MAC
    8k
    Uplink port
    2 1000M SFP ports + 2 1000M TP ports
    PON port
    4 SFP PON ports

    Control port
    1 10/100/1000M RJ45 port
    1 Console(RJ45), to debug the device
    MTBF
    100,000 hours

    EPON traits
    Support IEEE802.3ah
    Support DBA with minimum1Kbps granularity adjustable
    Support 1Gbps up link and down link symmetrical bandwidth
    Support AES-128 encryption to each Logical Link Identifier
    Support powerful OAM function, implement telnet management, maintenance and upgrade
    Support auto discovery and auto register of ONU (real-time operation)

    Protocols supported
    Support IEEE802.3,IEEE802.3u,IEEE802.3ab,IEEE802.3z
    Support IEEE802.1Q VLAN,IEEE802.1d Spanning Tree
    Support IEEE 802.1P QoS,IEEE802.3X Flow Control
    Support IEEE802.3ad Trunk,IEEE802.1W RSTP

    Network management
    Support GUI management based on SNMP
    Support WEB and Telnet GUI management based on CLI

    Other functions
    Support 1GMPv1/v2 protocol report, query and leave message mouse
    Support ONU remote configure and upgrade
    Support real-time alarm detection, accurate fault location
    Support the alarm information sent to the mailbox, support SMS alarm


    Datasheet download: HA7304 4PON EPON OLT.pdf

    Our Service:
    HiOSO provides technician team and special telephones to support after-sales service, customer can get answer and training from our technicians, the problem can be solved within 24 hours if there is anything with products. What's more, we provide free-exchange within one year, free-repair within three years and lifelong maintenance.

    Our advantage:
    Founded in 2002, Hioso Technology CO., Ltd. is the optic communication product manufacturer with 20 years experience. We engaged in the R&D, design, manufacture, sell FTTH and FTTD products all by ourselves and also provide OEM&ODM service for customers. We only provide cost-effective quality products and premium after-sale service.
